1.送料材料整平装置
（1）送料采用双加粗滚轴，加闭环式控制系统，软件控制精度，兼有机械手的精度，远远超越机械手的速度
（2）加粗式滚轴送料，速度快、不伤料，挂胶滚轴，不易脱落，经久耐用
（3）进料装置设有气动开合装置，能自动适应材料厚度延长机器使用寿命，且能防止材料倾斜。
2.双弯弧器设计
（1）采用双刀式交替拍弧机构及专利加装式挤弧结构，能切换自如，无缝对接，换料无需重新调试
（2）双杆升降式弯弧器，可使弯弧最小弧度更小，应对复杂字体的加工，加工厚质材料更轻松。
（3）滚弧式弯弧器，速度快、不伤料。
（4)弯弧转动采用磨齿齿轮，精度高，噪音小。
3.高精度进口刨刀
（1）进口型刨刀，精度高、经久耐用，刨刀采用硬质合金刀粒，成本低、切割稳定、美观，刀粒含多个刀尖，可单独使用且免维护研磨，基本实现设备零费用运行。
（2）刨刀系统自动对刀，免调试切割深浅，切割细腻、光滑、无毛刺
（3）双方轨定位加丝杆传动切割稳定
（4）切割背板采用硬质合金
4.加大型台面加台面测量，操作更简易。
5.大功率电机
切割、弯弧采用大功率伺服电机,精度高、速度快、扭矩大，提高做字效率
6.自动对刀，操作更简易。（同行一般采用手动对刀）
7.软件操作更简单：
（1）自主研发的软件，记忆不同规格的材料参数，更加人性化操作
（2）如那件带有计算边周到边长、面积、胶量（包括圆形宽度、高度）
（3）自动识别内外轮廓
（4）可根据雕刻机精度，自动补偿
（5）一键式校长度，测试弯弧
1. Feeding unique material leveling device
(1) Feeding adopts double thickening roller, plus closed-loop control system, software control precision, and the precision of the robot, far exceeding the speed of the robot
(2) Bold roller feeding, fast speed, no damage to the material, hanging rubber roller, not easy to fall off, durable
(3) The feeding device is equipped with a pneumatic opening and closing device, which can automatically adapt to the thickness of the material to prolong the service life of the machine and prevent the material from tilting.
2. The unique double curved arc design of the market
(1) It adopts double-knife alternate arc-shooting mechanism and patented installed arc-squeezing structure, which can be switched freely, seamlessly docked, and refueling without re-commissioning
(2) Double-bar lifting type arc bending device can make the minimum arc of arc bending smaller, and it is more convenient to process complex fonts and process thick materials.
(3) Rolling arc bending device, fast speed, no damage.
(4) The curved arc rotation adopts the grinding gear, which has high precision and low noise.
3. High precision imported planing knife
(1) Imported planing knives with high precision and durability. The planer adopts hard alloy knives. The cost is low, the cutting is stable and beautiful. The knives contain multiple tips. They can be used separately and maintenance-free grinding. run.
(2) The planing knife system automatically sets the knife, free of debugging and cutting depth, fine and smooth cutting, no burr
(3) Both rail positioning and screwing rod drive cutting stability
(4) The cutting back plate is made of hard alloy and can be used permanently.
4. Adding large countertops and measuring the surface, the operation is easier.
5. High power motor
High-power servo motor for cutting and bending, high precision, fast speed, high torque, improve word efficiency
6. Automatic tool setting, easy to operate. (Pedals generally use manual tool setting)
7. Software operation is simpler:
(1) Self-developed software, remembering material parameters of different specifications, more humanized operation
(2) If the piece has a calculated edge, the length of the side, the area, the amount of glue (including the width of the circle, the height)
(3) Automatic identification of internal and external contours
(4) Automatic compensation according to the precision of the engraving machine
(5) One-button calibration length, test bending
V7数控弯字机的技术参数：
型号 | V7 |
加工高度 | 10-130mm |
加工材料 | 不锈钢、镀锌板、铁皮、铝等金属平板材料 |
最小挤圆半径Mini extrusion radius | R≥7MM |
最小拍圆半径Mini pat radius | R≥4MM |
最小内外角距离Minimum inner and outer angle distance | 3mm |
材料厚度 | 0.3-1.2mm(铝材、铁皮1.5mm) |
整机功率 | 2000W |
长度精度Length Accuracy | 0.2mm/M |
送料扭矩Feeding Torque | >48Nm |
开槽扭矩峰值Slotting Torque Peak | >80Nm |
弯弧扭矩峰值Arc Bending Torque Peak | >240Nm |
外型尺寸 | 230cm*110cm*156cm |
净重N.weight | 480kg |
电源power | AC220V |
工作气压Working Pressure | 0.4-0.8mpa |

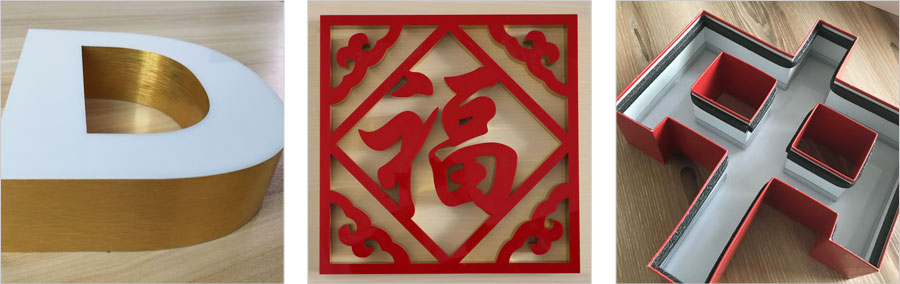

V7数控弯字机的加工样品：
：
屹克永晔优势
1、创新优势：自主创新是屹克永晔生存之本，本公司有稳定的研发团队，和多个行业品牌合作，为客户提供解决方案奠定技术基础。
2、制造优势：有干净整洁的现代化生产车间，有完整的生产流水线，每个环节不纰漏，设备出厂都是经过严格检验的。
3、服务优势：为客户提供24小时不间断服务，保证客户遇到问题能够尽快解决，提供定期回访、保养、维修一条龙服务。
4、合作优势：本公司资金实力雄厚，有多年广告设备行业经验，有稳定的研发团队，曾与多个广告行业品牌进行合作。
advantage:
1. Innovative advantages: Independent innovation is the foundation of the survival of the company. The company has a stable R&D team and cooperates with many industry brands to lay the technical foundation for providing solutions for customers.
2, manufacturing advantages: a clean and tidy modern production workshop, a complete production line, each link is not leaking, the equipment is strictly tested.
3, Service advantage: Provide customers with 24-hour uninterrupted service to ensure that customers can solve problems as soon as possible, and provide one-stop service for regular return visits, maintenance and repair.
4. Cooperation advantages: The company has strong financial strength, many years of experience in the advertising equipment industry, a stable R&D team, and has cooperated with many advertising industry brands.
